Files for 3D Printing and Mould Making

Cradle for SPOT Trace GPS Unit

This cradle, mounted to the top of a medium to large mammal collar, is intended to hold a SPOT Trace GPS unit. The cradle can be 3D printed to create a master from which a silicone mould can be made, allowing easy reproduction in polyurethane, epoxy resin, etc. STL file available here. Also included are optional standoffs to add in moulding. N.B. For ease of printing, you may wish to split the cradle in two horizontally in your slicing program of choice.

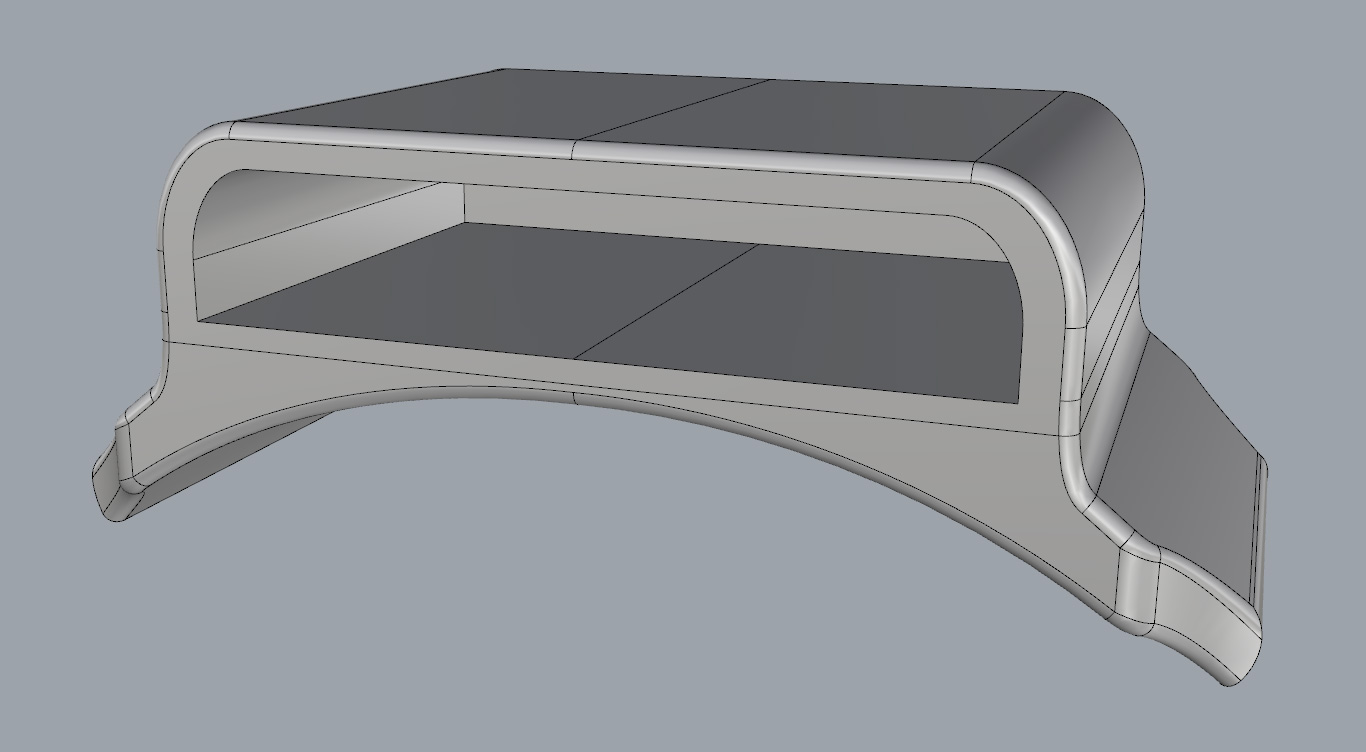

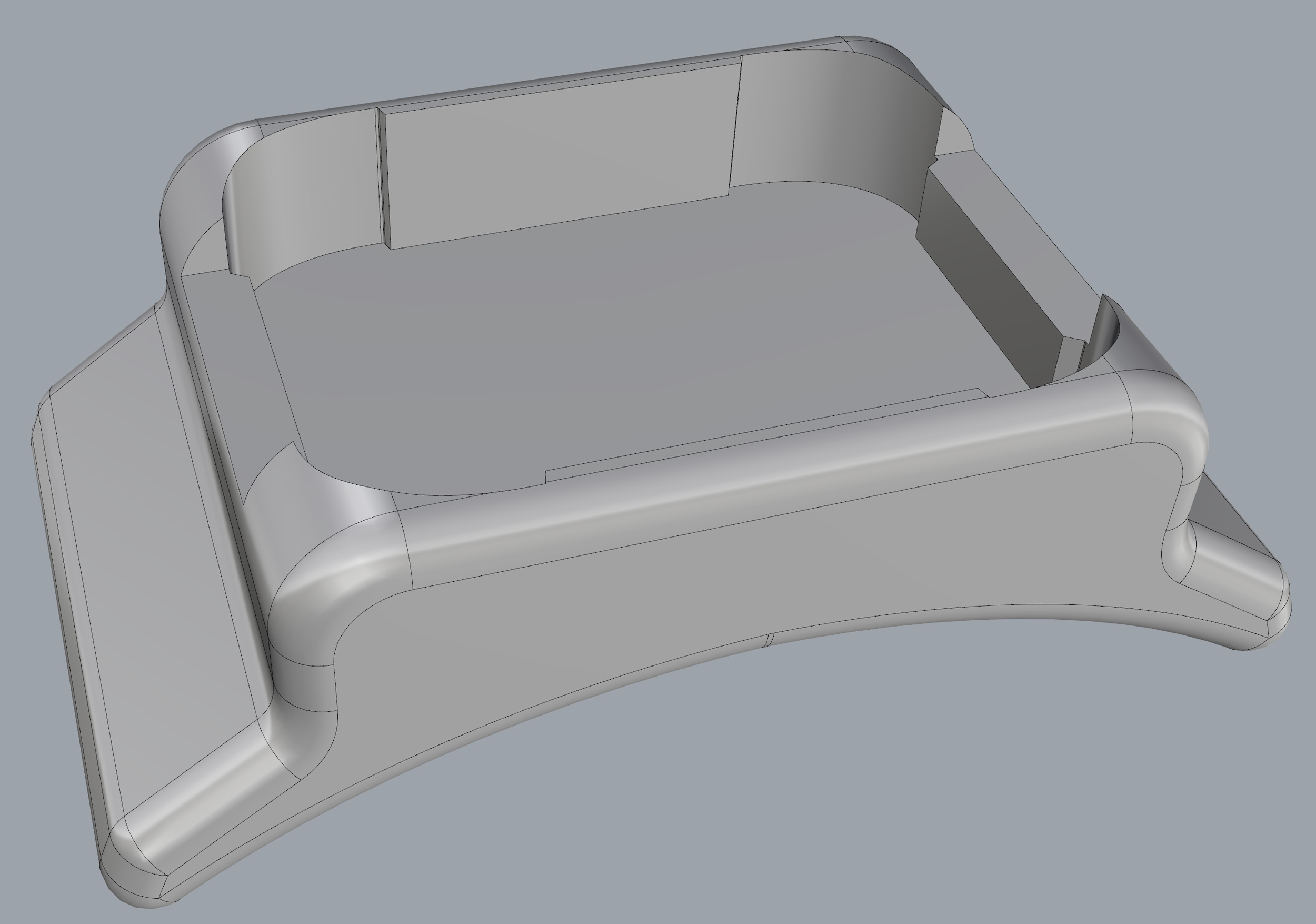

CAD model of a SPOT Trace cradle to be 3D printed for use on budget GPS collars

(Click for larger version)


Simple Cradle for GPS Unit

This simple, low profile cradle, mounted to the top of a small to medium mammal collar, is intended to provide a mounting point for an off-the-shelf GPS unit. Optionally, the cradle can be expanded with a battery tub, sufficiently deep enough to fit an AA battery. The cradle can be 3D printed to create a master from which a silicone mould can be made, allowing easy reproduction in polyurethane, epoxy resin, etc. STL file available here.

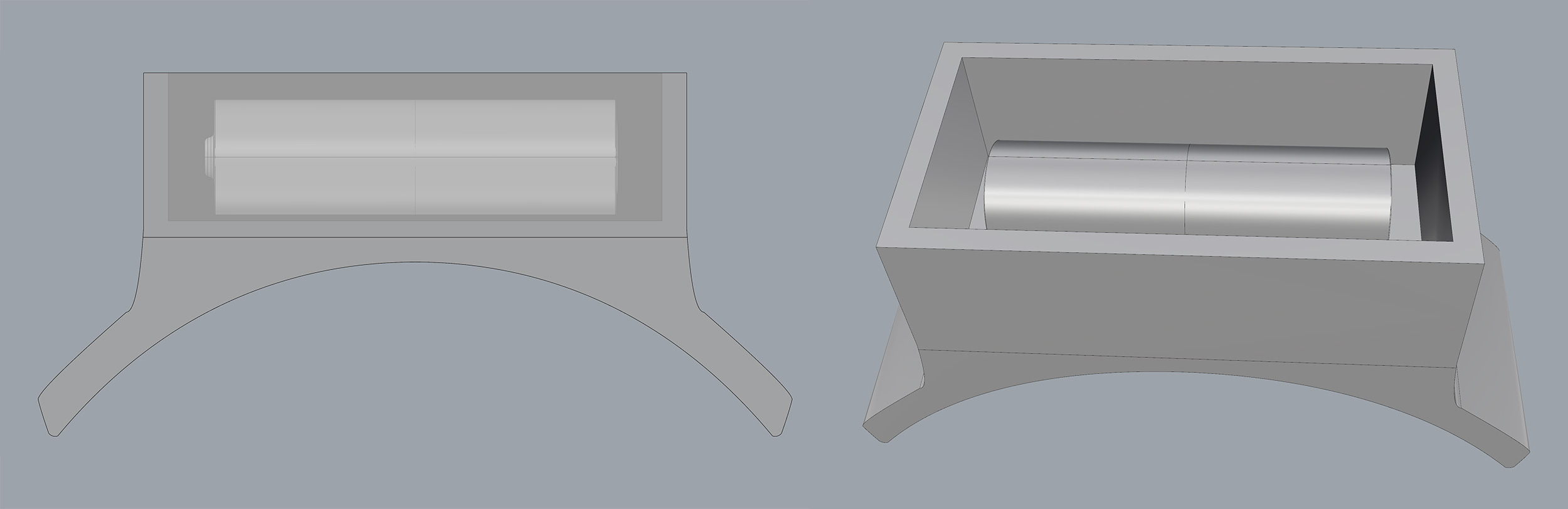

CAD model of a simple GPS cradle with optional battery tub to be 3D printed for use on budget GPS collars

(Click for larger version)


Battery Tub for 4 x AA Cell Batteries

This is a simple tub to be mounted to the bottom of a small to medium mammal collar, sufficient to house up to 4 x AA cell batteries and 1 x CR2450 coin cell. The cradle can be 3D printed to create a master from which a silicone mould can be made, allowing easy reproduction in polyurethane, epoxy resin, etc. STL file available here.

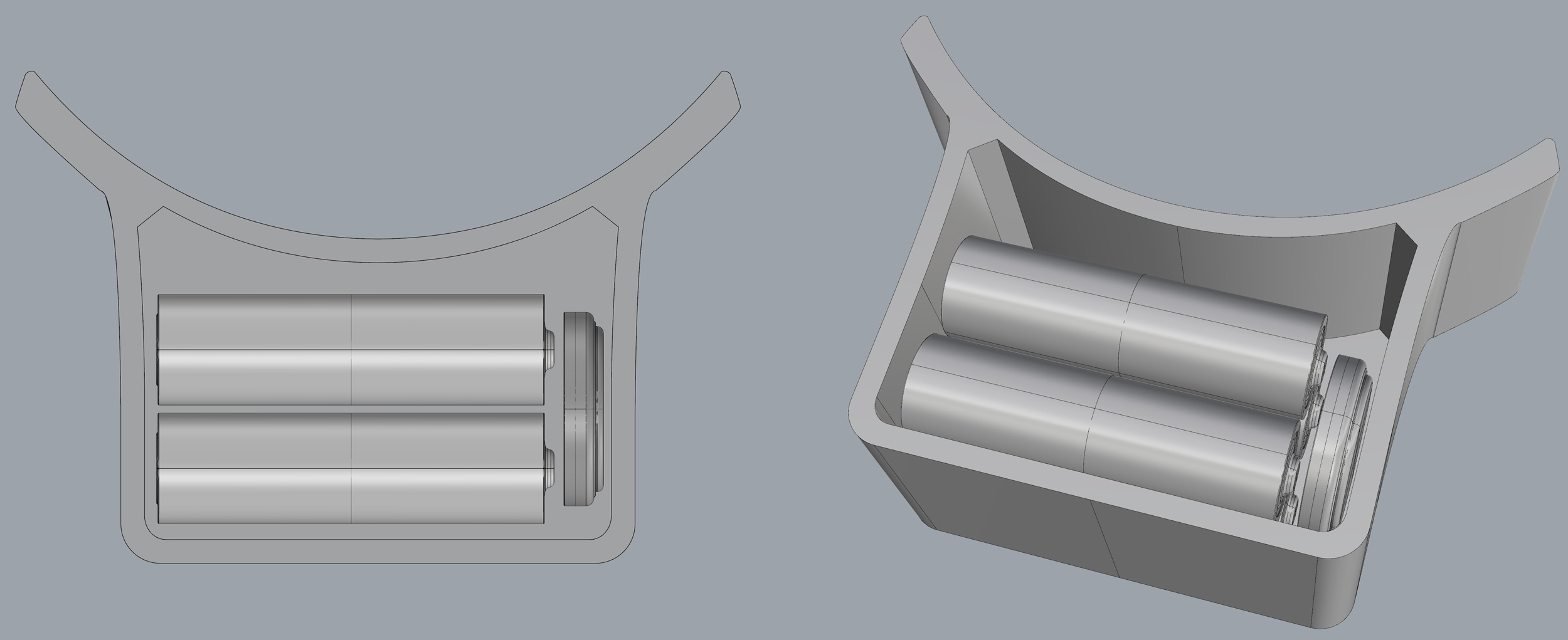

CAD model of a 4 x AA cell battery tub to be 3D printed for use on budget GPS collars

(Click for larger version)


Battery Tub for 2 x C Cell Batteries

This is a simple tub to be mounted to the bottom of a small to medium mammal collar, sufficient to house up to 2 x C cell batteries and 2 x CR2450 coin cells. The cradle can be 3D printed to create a master from which a silicone mould can be made, allowing easy reproduction in polyurethane, epoxy resin, etc. STL file available here.

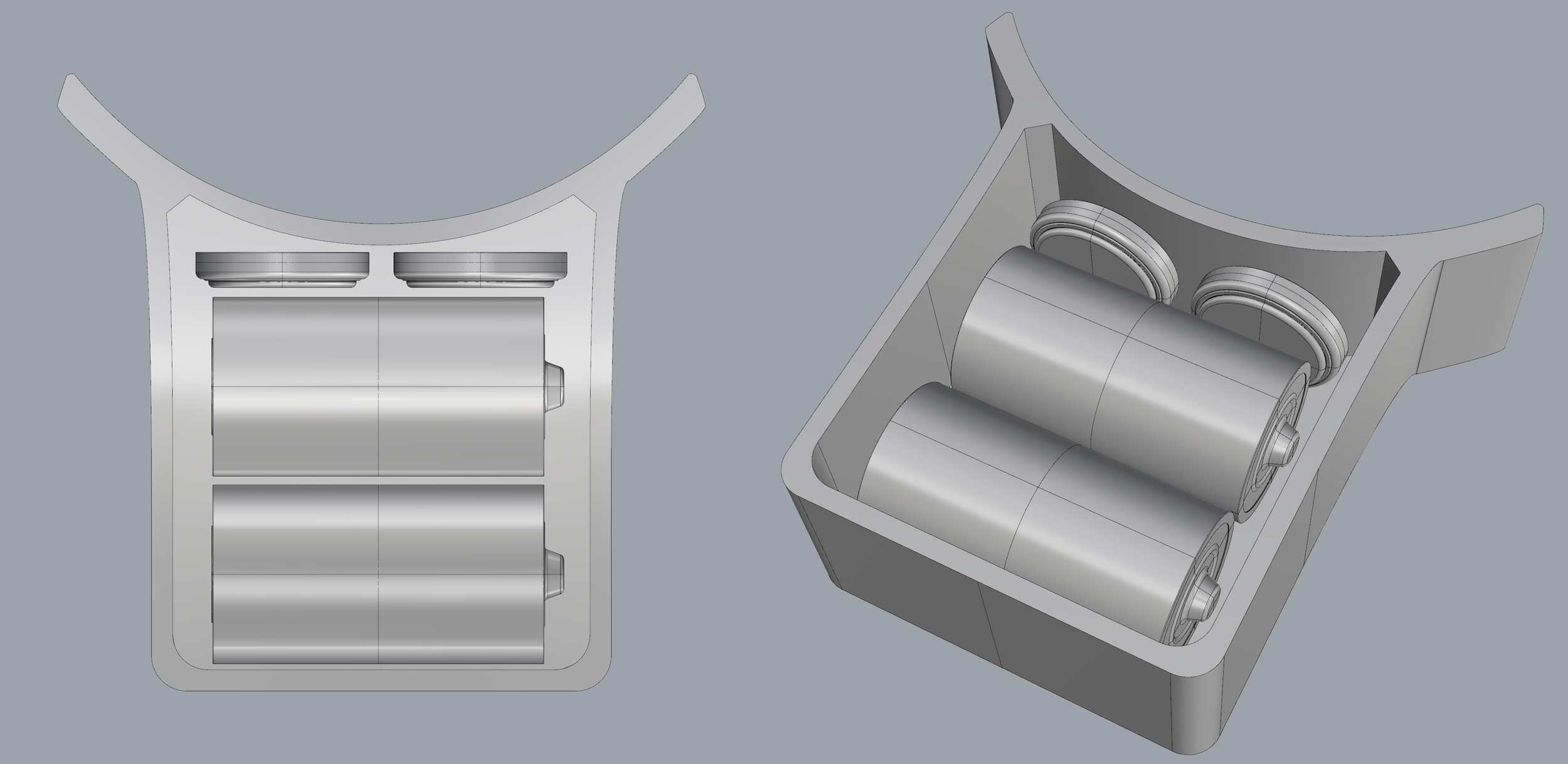

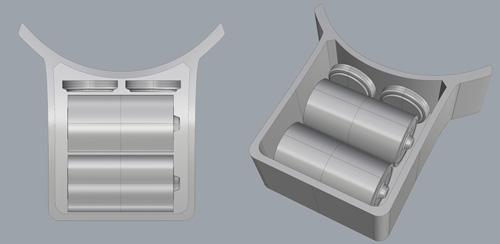

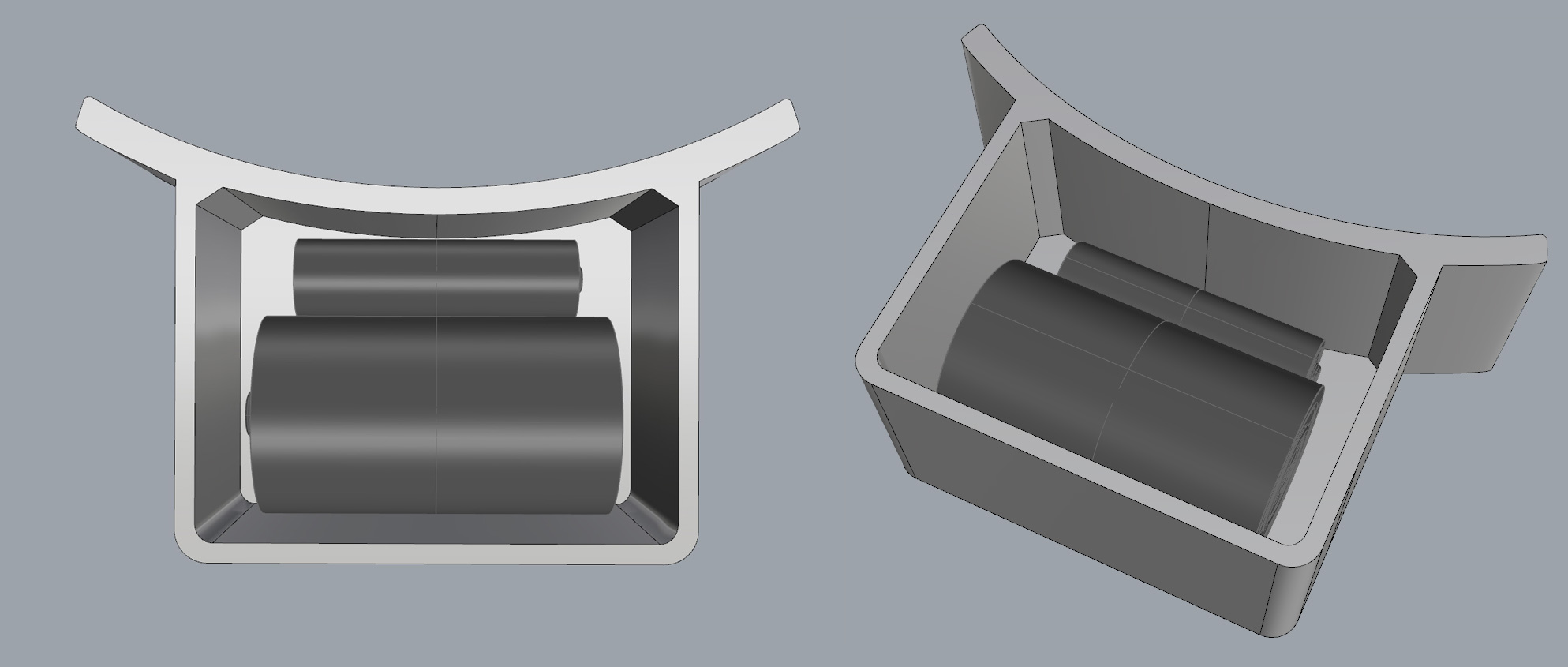

CAD model of a 2 x C cell battery tub to be 3D printed for use on budget GPS collars

(Click for larger version)
