A Versatile System for Detection of Your Target Animals

Wild Spy's Wireless Identification (WID) tags are animal-borne transmitters with a range of 20-200m line-of-sight, dependent on choice of conformal chipscale or external whip antenna. Each WID transmits a unique identifier which is picked up by a datalogger when in range. WID dataloggers record tag ID, date, time, duration of detection, and received signal strength indication (RSSI).

WIDs come standard in the form of an ear tag, or can be designed in virtually any format to suit most species, including small mammals, birds, and reptiles. WIDs can easily be fitted into existing collars or built into our own collars, as well as fitted to anklets, backpacks or any other animal-borne device.

One WID tag is fitted to each animal and multiple WID receivers are placed around your study site. WID dataloggers can be placed at particular locations of interest (nests, burrows, fences, water sources) or throughout the site and the number needed depends on the site and project aims. Alternatively, WID receivers can be hand-held or attached to UAVs for identification of animals from a distance and survivability studies.

For more information, see our WID brochure.

Benefits:

  • Light-weight
  • Small size
  • Cost-effective
  • Customisable for small animals and variable attachments

Features:

  • Long deployment times relative to tag size and research requirements (from a few months to more than a decade)
  • Tags are fully weather proof, and can be customised for use in marine environments
  • Datalogging system with highly adaptable power options including solar for long term monitoring
  • Inter-logger and satellite communication options available

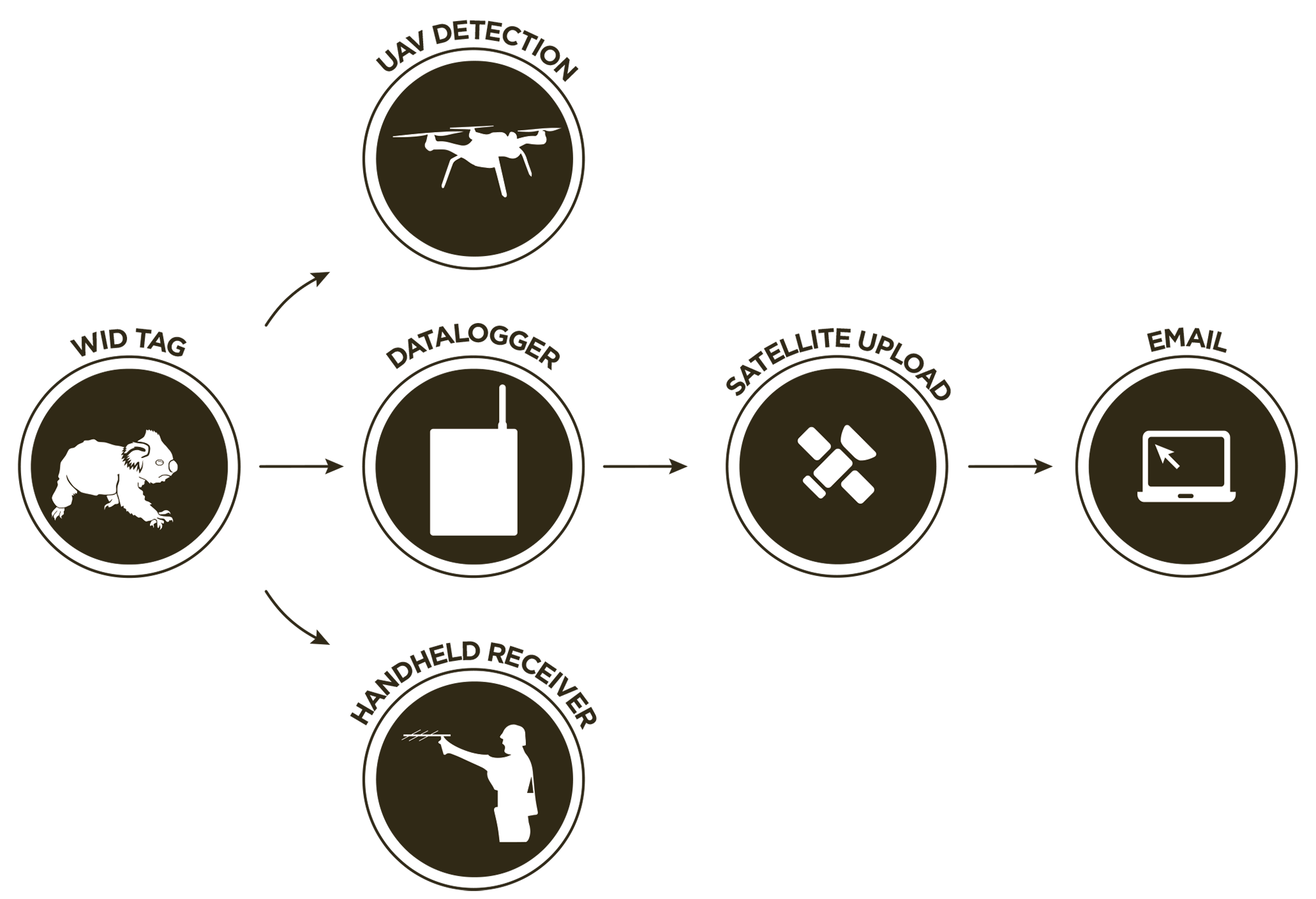

WID System Overview

(Click for larger version)

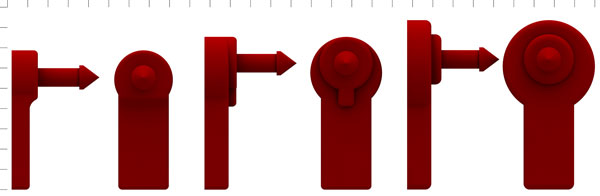

Comparison of 1225, 1632, and 2025 WID Ear Tags

Scale bars are at 5mm increments
(Click for larger version)

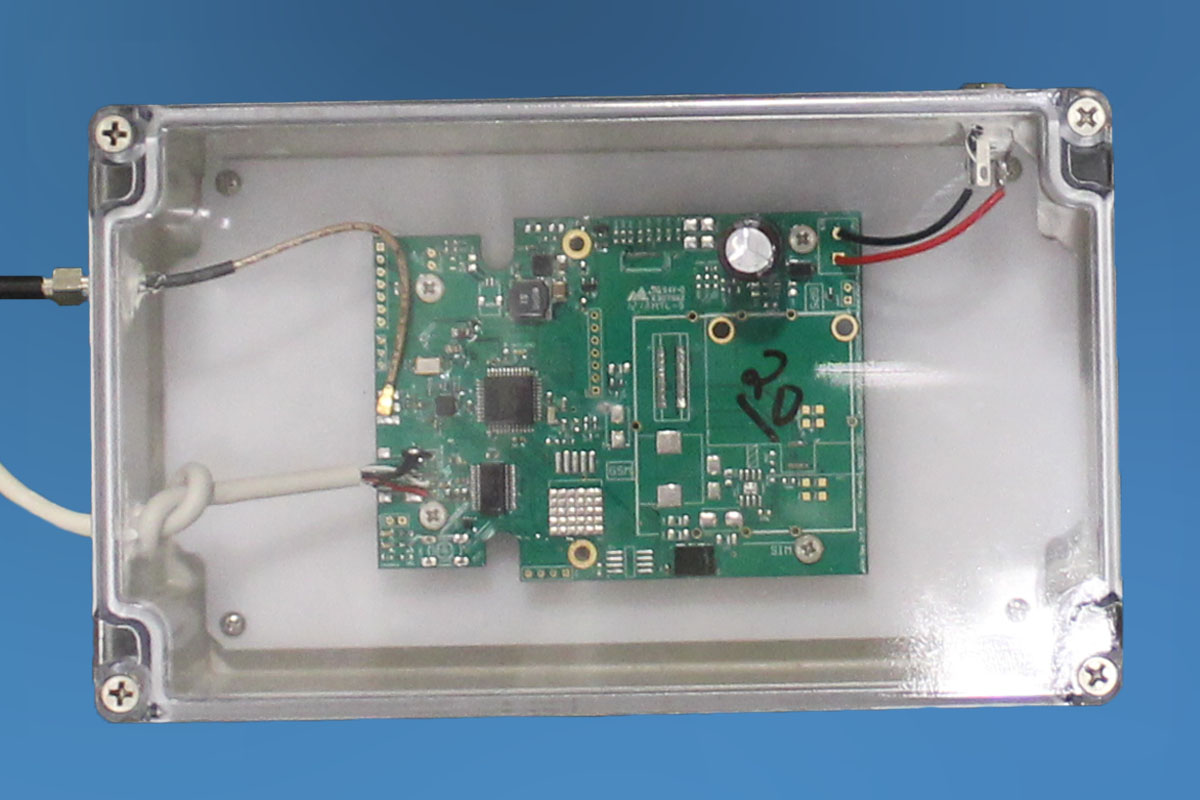

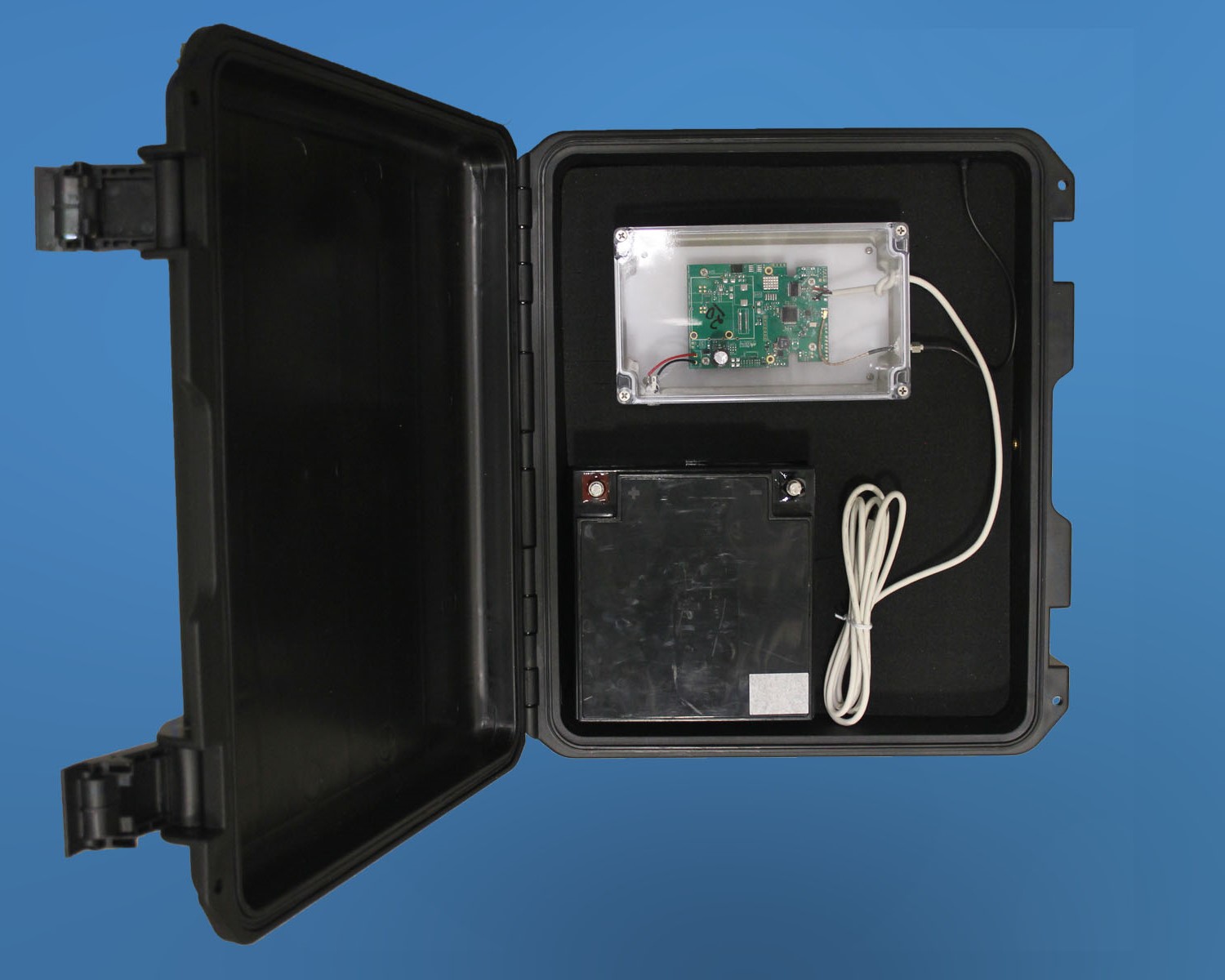

Datalogger

Item Value
Complete Unit Dimensions
(L x W x D)

26Ah battery, water proof

410 x 332 x 155 mm
Minimum Box Dimensions
(L x W x D)

no battery, water resistant

243 x 120 x 74 mm
Current Consumption 7mA @ 12V
Battery Life 4 months and 2 weeks

26Ah 12V lead acid

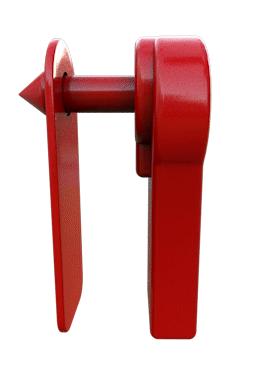

Ear Tag

Item Value
Dimensions (L x W x D)

Excluding spike

35 x 15 x 7 mm
Spike Length

From edge of tag to tip of spike

15.5 mm
Weight ~ 5 g
Battery Capacity

3V Lithium CR1225

50 mAh
Standard Deployment 6 months @ 10sec tx rate

Approx 50-100m LOS range

Deployment Times

Transmit Period Expected Life*
1 second 22 days
2 seconds 1 month, 13 days
5 seconds 3 months, 10 days
10 seconds 6 months
30 seconds 1 year, 5 months

* Based on 90% battery capacity at 25°C

General Specs

Item Value
Dimensions (L x W x D)

Excluding spike

38 x 18 x 8 mm
Spike Length

From edge of tag to tip of spike

15.5 mm
Weight ~ 6 g
Battery Capacity

3V Lithium CR1632

120 mAh
Standard Deployment 1 year, 2 months @ 10sec tx rate

Approx 50-100m LOS range

Deployment Times

Transmit Period Expected Life*
1 second 1 month, 22 days
2 seconds 3 month, 12 days
5 seconds 8 months
10 seconds 1 year, 2 months
30 seconds 3 years, 6 months

* Based on 90% battery capacity at 25°C

General Specs

Item Value
Dimensions (L x W x D)

Excluding spike

42 x 23 x 8.5 mm
Spike Length

From edge of tag to tip of spike

16 mm
Weight ~ 7 g
Battery Capacity

3V Lithium CR2032

220 mAh
Standard Deployment 2 years, 3 months @ 10sec tx rate

Approx 50-100m LOS range

Deployment Times

Transmit Period Expected Life*
1 second 3 months
2 seconds 6 months
5 seconds 1 year, 2 months
10 seconds 2 years, 3 months
30 seconds 6+ years

* Based on 90% battery capacity at 25°C
